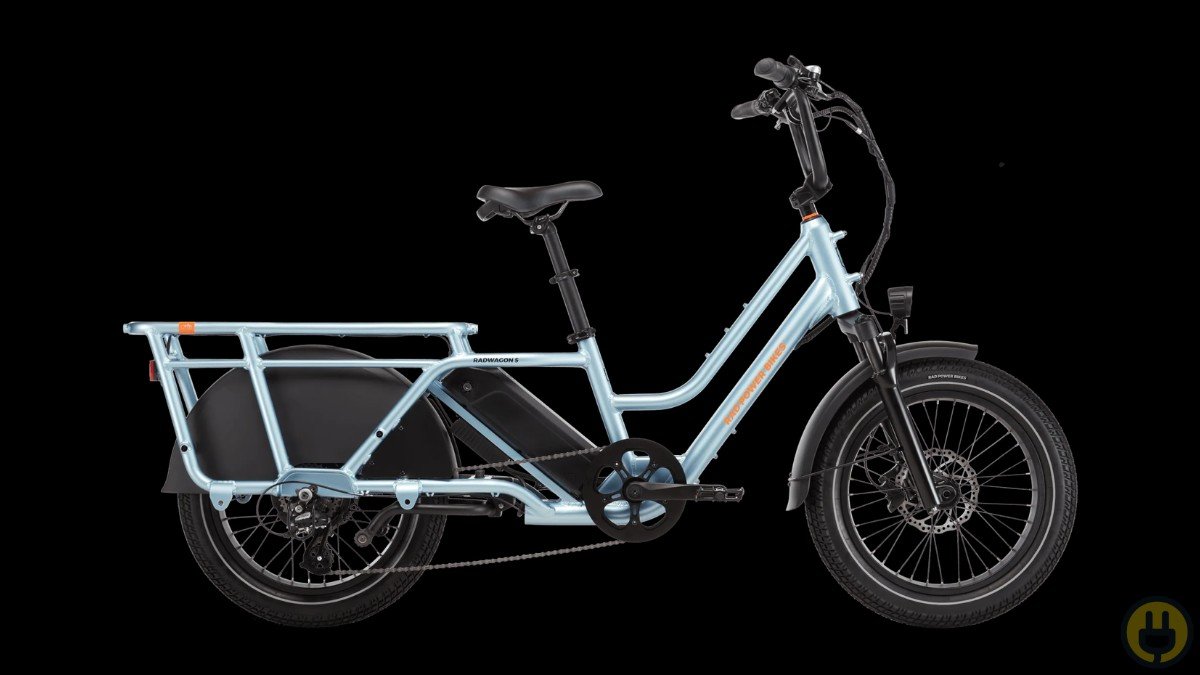

Model: RadWagon 5
Year: 2024
Price: $2,399
Weight: 86 lbs
Weight Limit: 375 lbs
Battery Capacity: 720 Wh
Battery Details: Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, 48V, 15Ah, UL Certified to UL-2271
Battery Removable: Yes
Motor Watts: 750 W
Motor Torque: 90 Nm
Motor Details: Rear hub motor
Top Speed: 28 MPH
Class: Multi-Class (Configurable)
Frame Style: Cargo
Folding: No
Riding Position: Upright
Standover Height: 21 inches
Reach: 14.2 inches
Saddle: Comfort
Pedal Assist Sensors: Torque
Throttle: Half twist grip throttle
Display: Rad custom color display with USB-C port
Lighting: Auto-on; front: 450 lumen LED headlight with built-in reflector; rear: integrated taillight with brake light and turn signals
Signalling: Rear integrated turn signals, brake light activation
Front Suspension: RST Guide suspension fork, 45mm travel, tapered steerer tube, thru axle
Speeds or Gears: 7
Gearing: 1x7 speed, Shimano 7-speed derailleur, 7-speed freewheel 11-34T
Shifter: Shimano 7-speed thumb shifter
Brakes: Tektro Hydraulic Disc HD-E395, semi-metallic E11.11 pads, 180mm x 2.3mm rotors
Wheel Diameter: 20 inches
Tire Width: 3.3 inches
Tires: Kenda 20" x 3.3"
Fenders: Full
Cargo Capacity: 120 pounds
Available Frame Sizes: Regular
Advertised Range: 60 Miles
The RadWagon 5 is Rad Power Bikes' fifth-generation electric cargo bike, designed to haul kids, gear, and everyday loads while remaining accessible to a wide range of riders from 4'11" to 6'3". It targets families and utility cyclists looking for a car-replacement option, with a 375 lb. total payload capacity and a condensed frame aimed at improved handling over its predecessor. The model distinguishes itself with a UL-certified battery and electrical system, integrated turn signals, hydraulic disc brakes, and a torque-sensor pedal assist — safety-focused upgrades that set it apart in the mid-range electric cargo bike segment.
